The accurate representation of Earth’s surface on a flat map is a fundamental challenge in cartography. This challenge has been tackled through various map projections, each with its strengths and limitations. In the early 20th century, the need for a standardized system for large-scale mapping, particularly for military purposes, led to the development of the Universal Transverse Mercator (UTM) system. This system, adopted globally and refined over time, has become the cornerstone of modern mapping and geographic information systems (GIS).

A Historical Perspective: From Mercator to Universalization

The UTM system finds its roots in the Mercator projection, developed in the 16th century. This cylindrical projection, while preserving angles and shapes locally, distorts distances and areas, especially at higher latitudes. This inherent distortion limited its applicability for large-scale mapping.

The development of the UTM system addressed these limitations. It utilizes a modified version of the Mercator projection, dividing the Earth into 60 zones, each spanning 6 degrees of longitude. Each zone is then projected onto a plane tangent to the Earth at the central meridian. This creates a series of map projections that minimize distortions within each zone, while maintaining compatibility across zones.

Understanding the UTM System: A Breakdown of Key Concepts

The UTM system defines a specific grid system, with the following key elements:

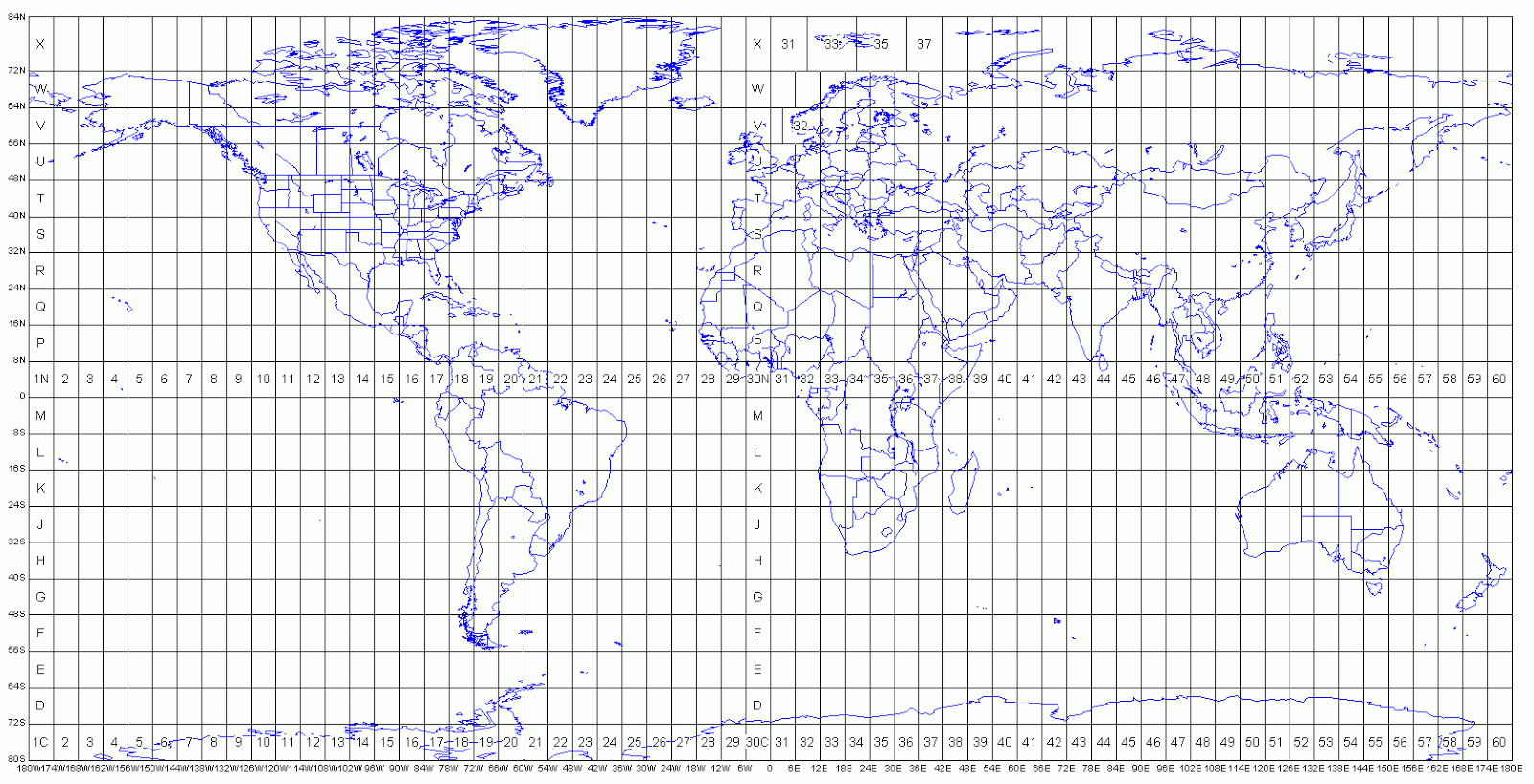

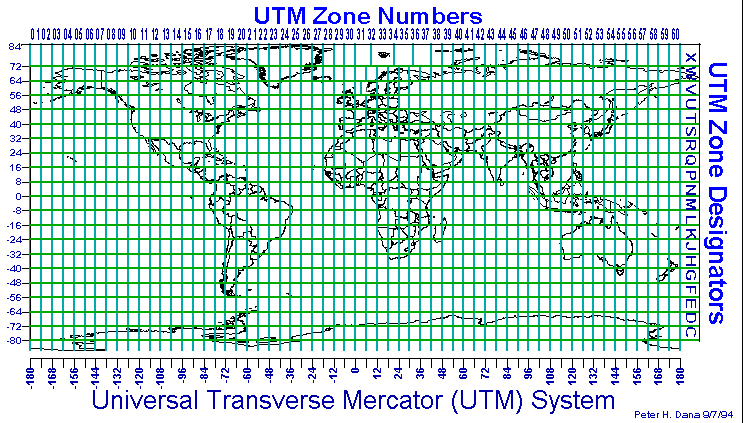

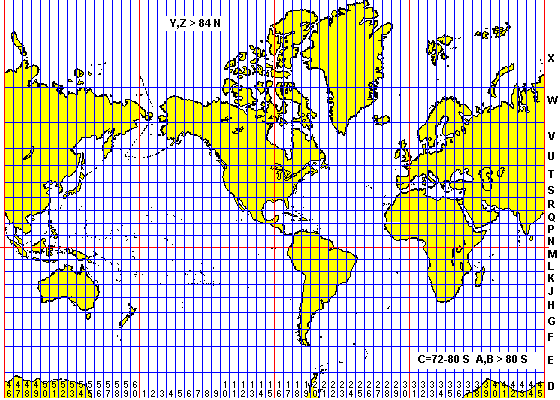

  • Zones: The Earth is divided into 60 zones, numbered from 1 to 60, starting at the 180th meridian and moving eastward. Each zone covers 6 degrees of longitude.
  • Central Meridian: Each zone has a central meridian, which serves as the reference line for the projection.

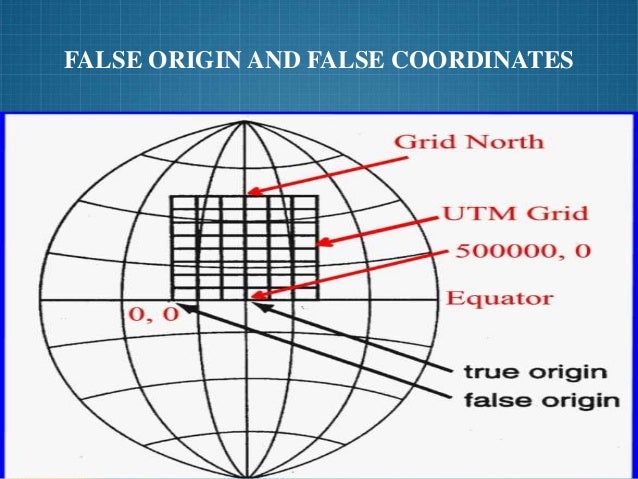

  • False Northing: To avoid negative coordinates in the southern hemisphere, a false northing of 10,000,000 meters is added to the grid coordinates.
  • False Easting: To avoid negative coordinates in the western hemisphere, a false easting of 500,000 meters is added to the grid coordinates.
  • UTM Coordinates: Coordinates in the UTM system are expressed in meters, with the easting value representing the distance from the central meridian and the northing value representing the distance from the equator.

The Advantages of the UTM System: A Framework for Precise Mapping

The adoption of the UTM system brought numerous advantages to mapping and GIS applications:

  • Global Coverage: The UTM system provides a standardized framework for mapping the entire Earth, eliminating inconsistencies between different mapping systems.
  • Minimized Distortion: The zonal projection minimizes distortion within each zone, ensuring accurate representation of distances and areas.
  • Simplified Calculations: The use of a rectangular grid system simplifies calculations and data analysis, making it easier to integrate data from different sources.
  • Compatibility: The UTM system is compatible with various GIS software and data formats, facilitating data sharing and interoperability.

The Continued Evolution of the UTM System: Adapting to New Technologies

The UTM system has not remained static. The development of satellite-based positioning systems, such as GPS, has led to the integration of the UTM system into these technologies. The accuracy and precision of these systems have further enhanced the utility of the UTM system for a wide range of applications.

FAQs: Addressing Common Questions about the UTM System

Q: What is the difference between UTM and WGS84?

A: WGS84 is a geodetic datum, a reference system that defines the shape and size of the Earth. UTM is a map projection system that uses WGS84 as its datum. In essence, WGS84 provides the framework, while UTM defines how to project that framework onto a flat surface.

Q: How do I convert UTM coordinates to latitude and longitude?

A: Conversion between UTM coordinates and latitude and longitude requires specialized software or online tools. These tools use the UTM zone and grid parameters to perform the conversion.

Q: Why are there different UTM zones?

A: The zonal system is used to minimize distortion. By dividing the Earth into zones, the projection is applied to smaller areas, resulting in more accurate representations.

Q: What are the limitations of the UTM system?

A: While the UTM system minimizes distortion, it cannot eliminate it entirely. The distortion increases at higher latitudes, making it less suitable for mapping polar regions.

Tips for Working with the UTM System

  • Understand the Zone: Always identify the correct UTM zone for your location before working with UTM coordinates.
  • Use Appropriate Software: Utilize GIS software or online tools specifically designed for working with UTM coordinates.
  • Be Aware of Distortion: Understand the limitations of the UTM system and be mindful of potential distortions, especially at higher latitudes.

Conclusion: A Standard for Precise and Consistent Mapping

The adoption of the Universal Transverse Mercator (UTM) system revolutionized mapping and GIS applications. It provides a standardized framework for representing the Earth’s surface, minimizing distortion, and facilitating data integration and analysis. As technology continues to evolve, the UTM system will likely continue to adapt and remain a vital tool for precise and consistent mapping across the globe.
